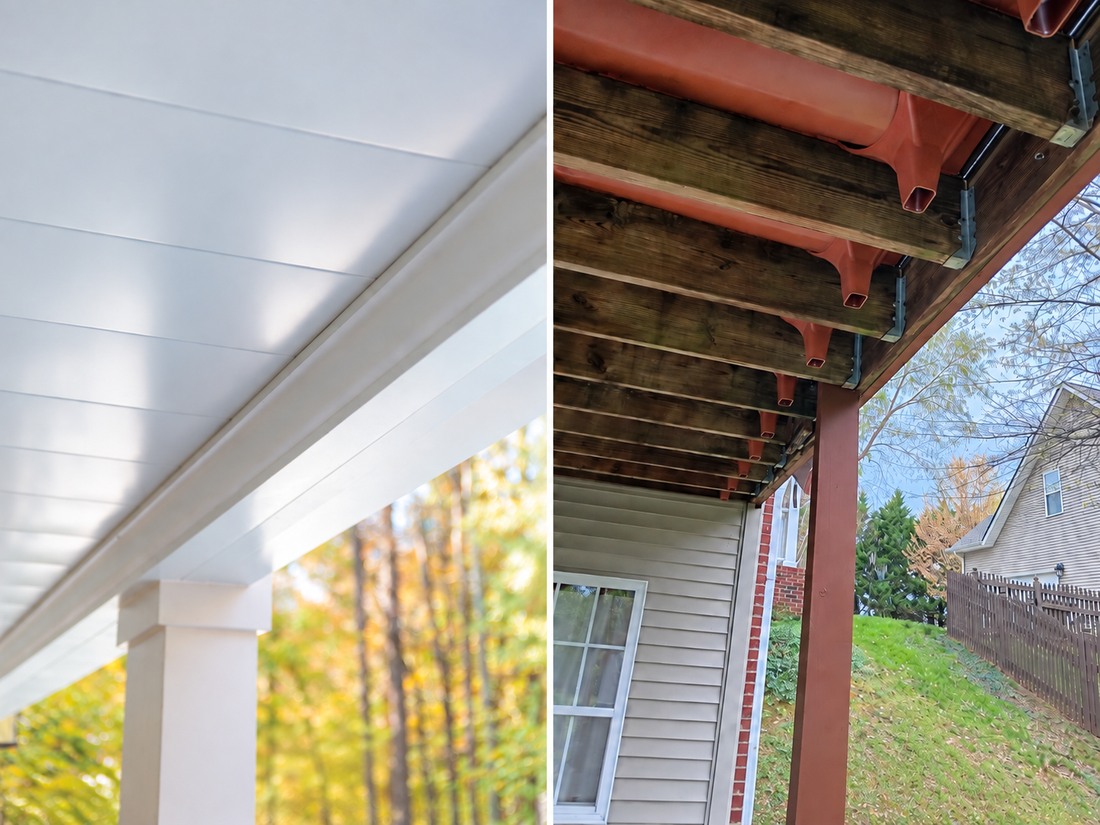

Above-Joist vs. Below-Joist Deck Drainage Systems: Which Is Right for Your Deck?

Above-joist drainage systems collect water before it reaches the deck framing. Below-joist systems collect it beneath the framing—and systems like OASITek also create the finished ceiling.

Both approaches can help turn the area under an elevated deck into usable outdoor space. The right choice depends on whether you’re building a new deck or improving an existing one, how you want to manage moisture, and what you want the finished space to look like.

Here’s what to consider before choosing.

1. What Is an Above-Joist Deck Drainage System?

An above-joist system installs beneath the deck boards, over the supporting joists. Many use flexible membranes, sometimes called "bladder-style systems", to form troughs that direct water toward drainage outlets.

Because the drainage layer sits above the framing, a properly installed system helps keep water coming through the decking from reaching the joists.

Keeping that rainwater off the framing is a key advantage of above-joist drainage.

The installation sequence matters, though: the system generally goes in before the deck boards are installed. That makes new construction or a project where decking is already being removed a convenient time to install it.

2. What Is a Below-Joist Deck Drainage System?

A below-joist system installs beneath the deck framing. Water passes through the gaps in the deck boards before reaching the drainage system below.

OASITek uses aluminum panels to collect that water and direct it toward a gutter and downspout. Those same panels create the finished ceiling.

OASITek was designed to be added to an existing deck without removing the deck boards.

That makes it a practical option when you’re happy with your deck and want to improve the space underneath it. It can also be included in a new-deck project.

3. Are You Building a New Deck or Keeping the One You Have?

This is often the most useful place to start.

If You’re Building a New Deck

With the framing exposed, you have the opportunity to install an above-joist drainage system before laying the decking.

If your priority is intercepting water before it reaches the joists, this approach is worth considering. You’ll also want to plan any separate ceiling, lighting, and finishing work beneath it.

A below-joist system remains an option for new construction, particularly if you want a system that combines water collection with a finished, removable ceiling.

If You Already Have a Deck

Installing an above-joist system means removing the deck boards to expose the framing. Depending on their condition and how they are fastened, the boards may be reusable, or some may need replacement.

That adds a lot of work to consider if your existing decking is still in good shape.

OASITek installs from underneath your existing deck, allowing you to keep the deck surface in place while improving the area below.

4. How Do the Two Approaches Manage Joist Moisture?

The distinction is straightforward:

• Above-joist systems help prevent water coming through the decking from wetting the joists.
• Below-joist systems collect water after it passes through the framing area, so the joists can still get wet.

With a below-joist system, drying deserves attention alongside drainage.

Moving water away from the patio below and helping moisture leave the deck cavity are two different jobs. OASITek addresses the second with its optional Power Ventilation Kit.

How the OASITek Power Vent Helps

The OASITek Power Ventilation Kit uses a dehumidistat to automatically respond to humidity in the underdeck cavity. The fan exhausts moist air, helping improve airflow and dries your structural framing significantly faster.

An above-joist membrane helps keep rainwater off the joists; the Power Vent helps the cavity and framing dry after moisture gets in.

The Power Vent does not stop the joists from getting wet or turn a below-joist ceiling into an above-joist barrier. Its purpose is to help remove humid air and improve drying conditions. Actual drying depends on the weather, airflow, and deck configuration.

For homeowners choosing a below-joist system, this is an option to include in the initial project plan.

5. Does the Drainage System Include a Finished Ceiling?

A dry area and a finished-looking area aren’t necessarily the same thing.

Many above-joist membrane systems handle drainage while leaving the joists visible from below. If you want a finished ceiling, you generally need a separate ceiling installation.

That can mean additional materials, support components, labor, and planning for future access.

OASITek combines water collection and the finished aluminum ceiling in one system. Its panels provide a beautiful surface beneath the deck, so you don’t need to add another decorative ceiling to complete that appearance.

When comparing options, consider the complete project—from water management to the finished view from your patio.

6. What Happens If There’s a Leak or Debris Buildup?

When choosing a drainage system, think about how you’ll access it if something needs attention later.

Leaks Can Affect a Separate Finished Ceiling

With an above-joist bladder or membrane system, a separate finished ceiling is often installed underneath to complete the appearance.

If the drainage system develops a leak, water can reach that secondary ceiling. Depending on the ceiling material and how long the leak goes unnoticed, this may cause staining, swelling, deterioration, or damage to the finish.

Repairing the problem is often expensive, and can involve accessing the drainage system and repairing or replacing affected ceiling materials. The amount of work depends on the leak’s location and how the deck and ceiling were constructed.

How Do You Clean Debris Out of a Bladder System?

Leaves, pine needles, dirt, and other small debris can work their way through gaps in the deck boards and collect in drainage troughs or near outlets.

Before choosing a system, ask: How will I reach those areas if flushing alone doesn’t clear the buildup?

Cleaning methods vary by manufacturer and installation. Some systems can be flushed from above, but a stubborn blockage or an inaccessible area may require removing deck boards or opening an access point. A separate ceiling below does not provide access to the inside of an above-joist drainage trough.

Follow the manufacturer’s cleaning instructions and plan for access before the project is finished.

OASITek’s Removable Panels Provide Access From Below

OASITek’s aluminum panels serve as both the drainage surface and the finished ceiling, and they are designed to be removed for inspection, cleaning, and maintenance without damaging the system!

This allows access to the cavity above the panels without removing the deck boards. It also eliminates the need for a separate decorative ceiling layer beneath the drainage panels.

Being able to reach the system later is an important part of choosing it today.

7. How Should You Compare the Total Cost?

Compare systems based on the same finished result.

A drainage-only price and a price that includes a finished ceiling cover different amounts of work. Ask what each option includes and what remains to be purchased or installed.

Consider:

• Drainage components, gutters, and downspouts.
• Removal and reinstallation or replacement of decking.
• A separate finished ceiling, if needed.
• Labor and any required support components.
• Lighting, fan mounts, and electrical work.
• Ventilation options.
• Custom details around posts, beams, corners, and other obstacles.

On a new deck, installing above-joist drainage while the framing is exposed may fit naturally into the construction schedule. On an existing deck, keeping the decking in place can avoid an additional stage of work.

The best comparison is a complete project estimate for your specific deck.

8. Can OASITek Fit My Deck?

OASITek offers standard kits for common deck dimensions and customized kits for other sizes and layouts.

If your deck fits a standard kit’s dimensions and layout requirements, components can be trimmed during installation. Larger decks, unusual shapes, and more complicated details can be reviewed for a custom kit.

Measurements and photos help us account for posts, beams, corners, and drainage locations before recommending an approach.

Whether you plan to install it yourself or would prefer help from a Magnolia Certified Contractor, planning starts with the deck you have.

9. Which System Is Right for You?

An above-joist system may be a good fit if you’re building a new deck or replacing the decking and want to intercept rainwater before it reaches the joists. Include a separate ceiling in your plan if you want a finished appearance below.

OASITek may be a good fit if you want to improve an existing deck without removing its boards, combine drainage with a finished aluminum ceiling, and retain removable-panel access. Its optional Power Ventilation Kit adds active ventilation to help the cavity dry after moisture gets in.

Both approaches require proper installation and drainage planning. The choice comes down to your deck, your priorities, and the complete outdoor space you want to create.
